Floor plans, elevations and cross sections of existing buildings, captured by 3D laser scanner. Delivered in AutoCAD and PDF as standard, or as a Revit model on request.
Overview
An exact record of the building you've got
At Project North Geomatics we use the latest 3D laser scanning technology to carry out all measured building surveys. With accuracy the most important factor in any measured building survey, 3D laser scanners capture highly detailed and highly accurate data, resulting in fully comprehensive deliverables.
Measured building surveys involve the detailed measurement and analysis of a structure's physical features, including its dimensions, elevations and architectural elements. These surveys use cutting-edge technologies such as 3D laser scanning, photogrammetry and advanced surveying instruments to capture accurate data. The resulting point clouds, digital models and drawings provide a wealth of information that can be used throughout a project's lifecycle.
In a construction industry where precision and efficiency drive successful delivery, measured building surveys have become an invaluable tool for architects, engineers and contractors — giving a comprehensive understanding of existing structures, supporting informed decisions and reducing costly errors.
Our approach
Why we survey with 3D laser scanners

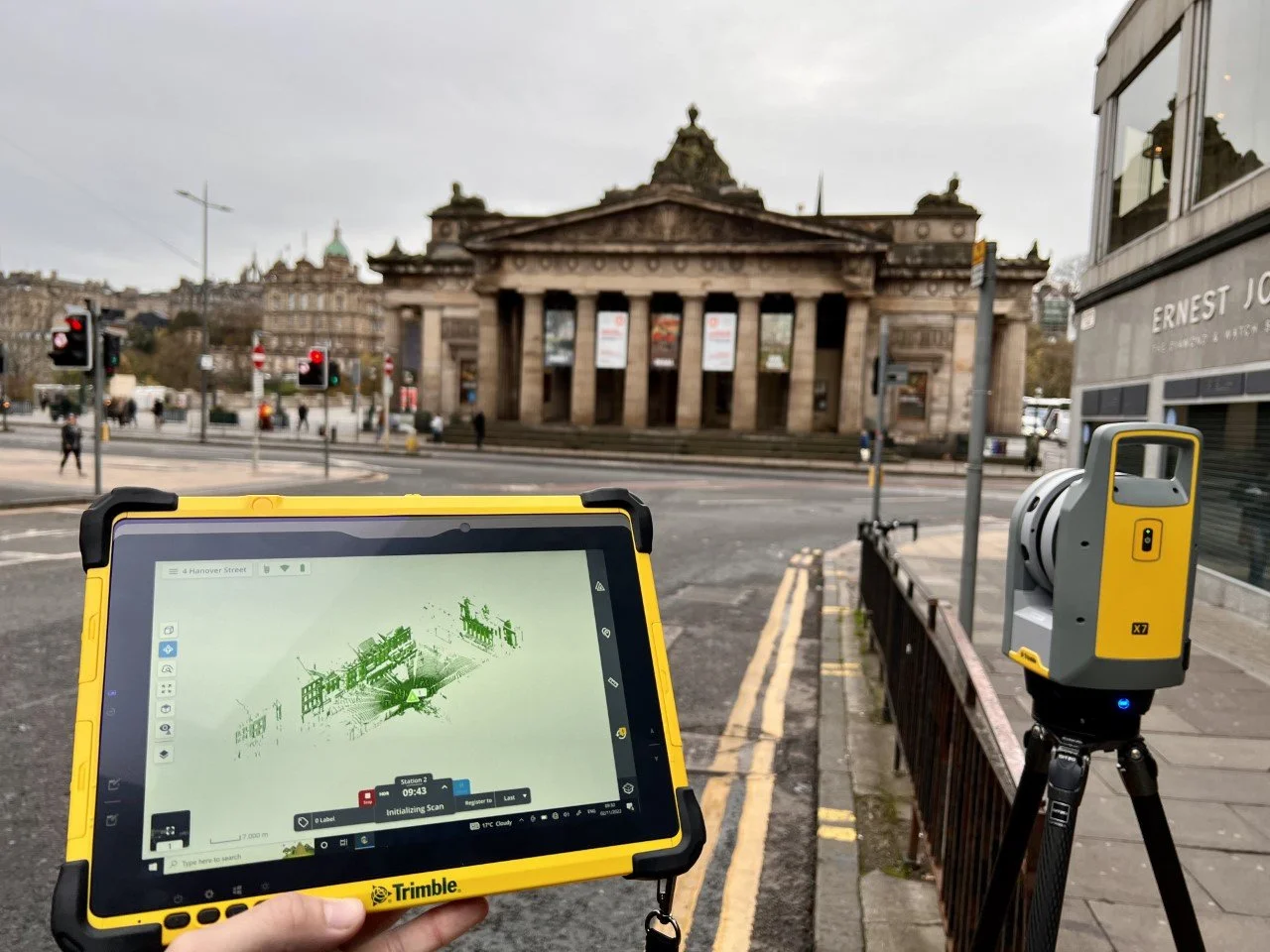

All our measured building surveys are carried out by trained professionals using 3D laser scanners, total stations and GNSS. Here's what the scanning adds to the process.
High Precision & Accuracy
Laser beams measure distances and capture millions of data points within seconds, giving highly accurate measurements of the building's geometry with minimal error.
Speed & Efficiency
Compared to traditional methods, scanning dramatically reduces surveying time — covering large areas quickly with detailed point clouds.
Non-Intrusive Capture
Scanning needs no physical contact with the building. Particularly valuable for historic or delicate structures, where it removes any risk of damage.
Complex Shapes & Detail
Intricate architectural detail and complex geometry are captured accurately — useful for ornate historic buildings and unusual modern structures alike.
Fewer Site Visits
Because a scan is so comprehensive, repeat visits are rarely needed. That saves time and resource, and keeps the survey cost-effective.
Visualisation & Collaboration
Point cloud data can be viewed in 3D modelling software, giving a clear representation of the building and improving communication between stakeholders.
Clash Detection & BIM
Bringing point cloud data into BIM software surfaces clashes between proposed design and existing structure early, reducing conflicts on site.
As-Built Documentation
The captured data doubles as accurate as-built documentation — essential for future renovation, maintenance and facility management.
Useful information
Measured building surveys, explained
What they cover, where they're used, and exactly what you get back at the end.
What are measured building surveys?
Measured building surveys are an accurate and detailed way of mapping a building or structure internally and externally. They identify all internal and external features, from window and door positions to internal walls and floor levels — every relevant feature is presented.
A measured building survey consists of floor plans, internal and external building elevations, and building cross sections.
Benefits & usage
Measured building surveys have a wide range of uses, from residential and commercial to historic and restoration projects. Some of the main ones:
Architects, engineers and planners use measured building surveys as the base for all major initial design work, giving an accurate representation of the structure so designs work both structurally and visually.
An inaccurate survey causes real problems — increased costs, redesign, project delays, fines and planning issues at both application and completion stage. The main benefit is accuracy and detail: the platform for design and planning work to proceed with confidence while making the most of the space available. Modern techniques also capture 3D point cloud data to further enhance deliverables for use in BIM applications.
Procedure & deliverables
All measured building surveys are carried out by fully qualified and competent surveyors, to RICS guidelines, working alongside client-specific specifications and requirements. All work is subject to rigorous quality control to ensure the accuracy and detail of the plans provided.
Floor plans, elevations and sections come in AutoCAD format with digital PDFs as standard. A 3D Revit model is available on request and agreed at tender stage.
Our work
Surveys we've delivered

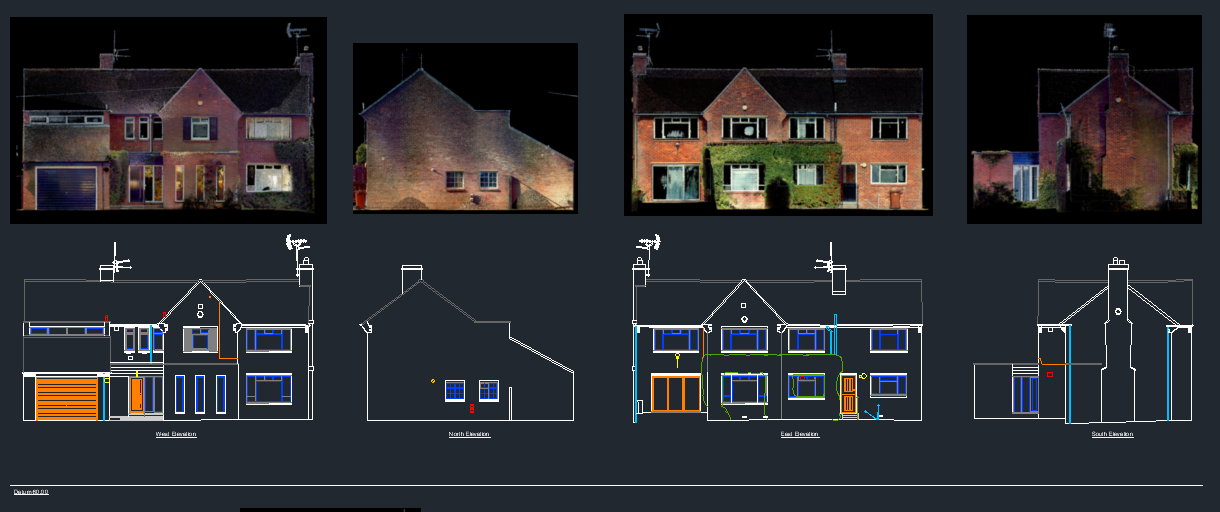

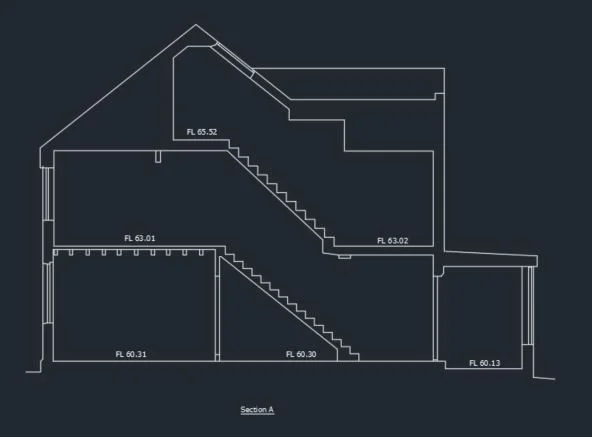

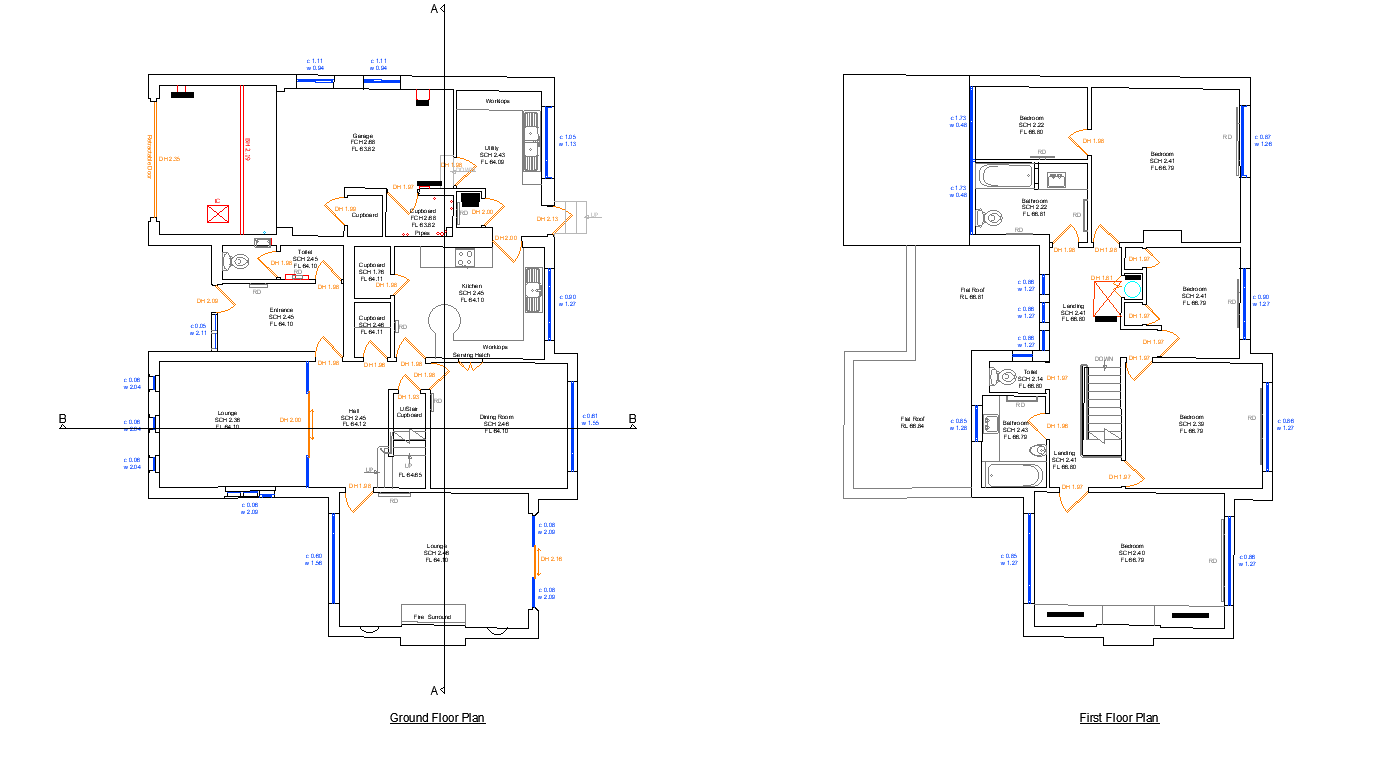

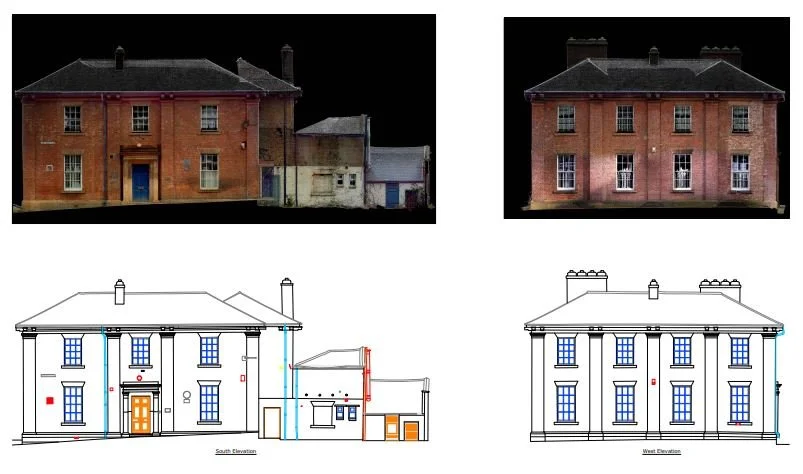

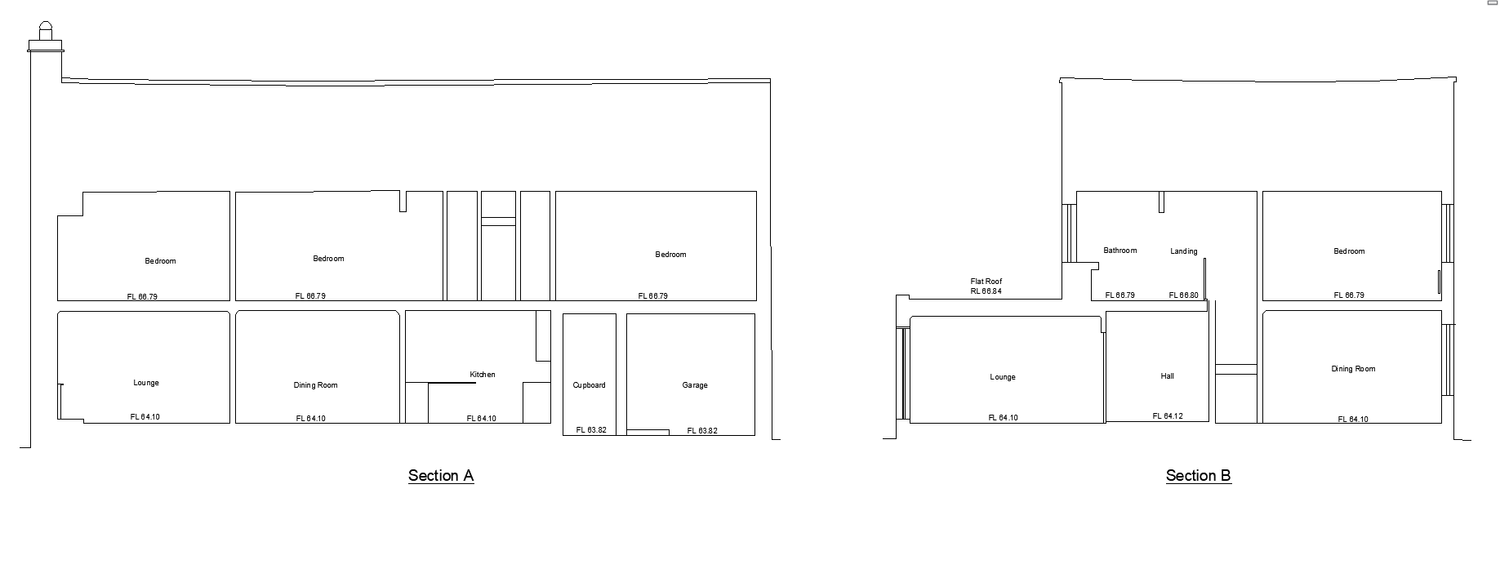

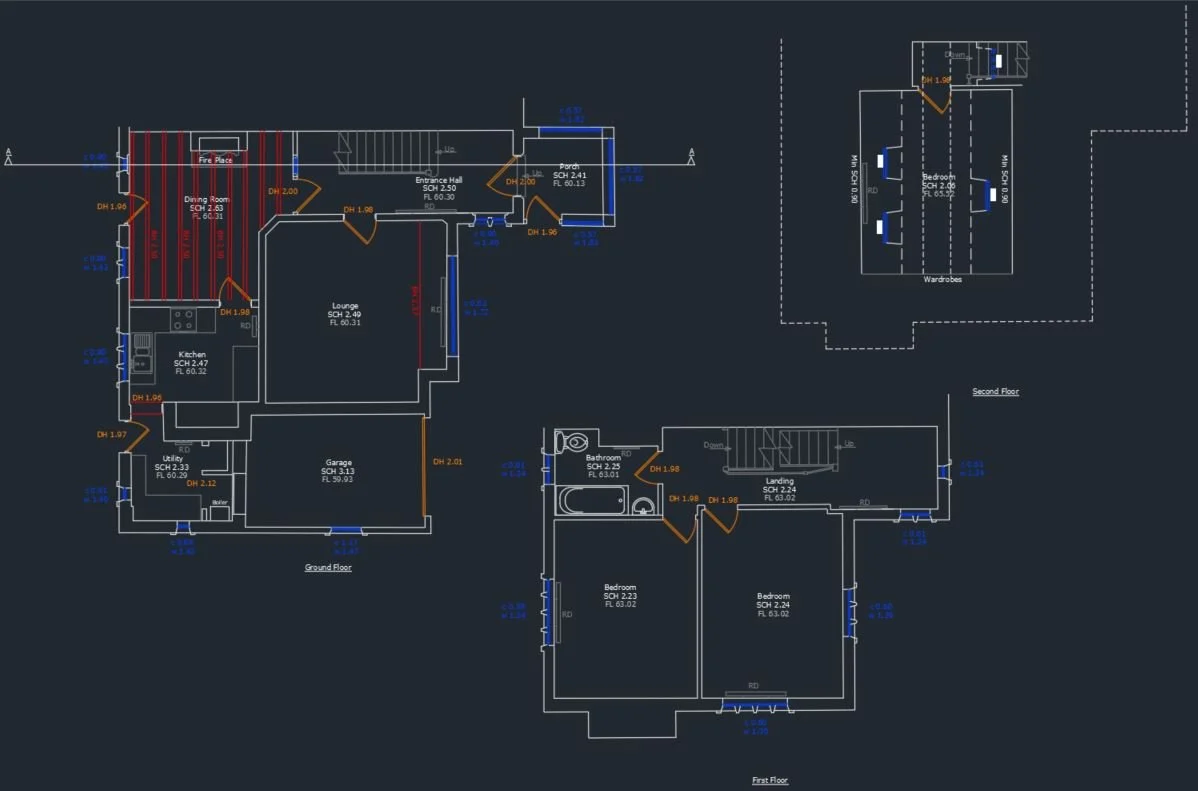

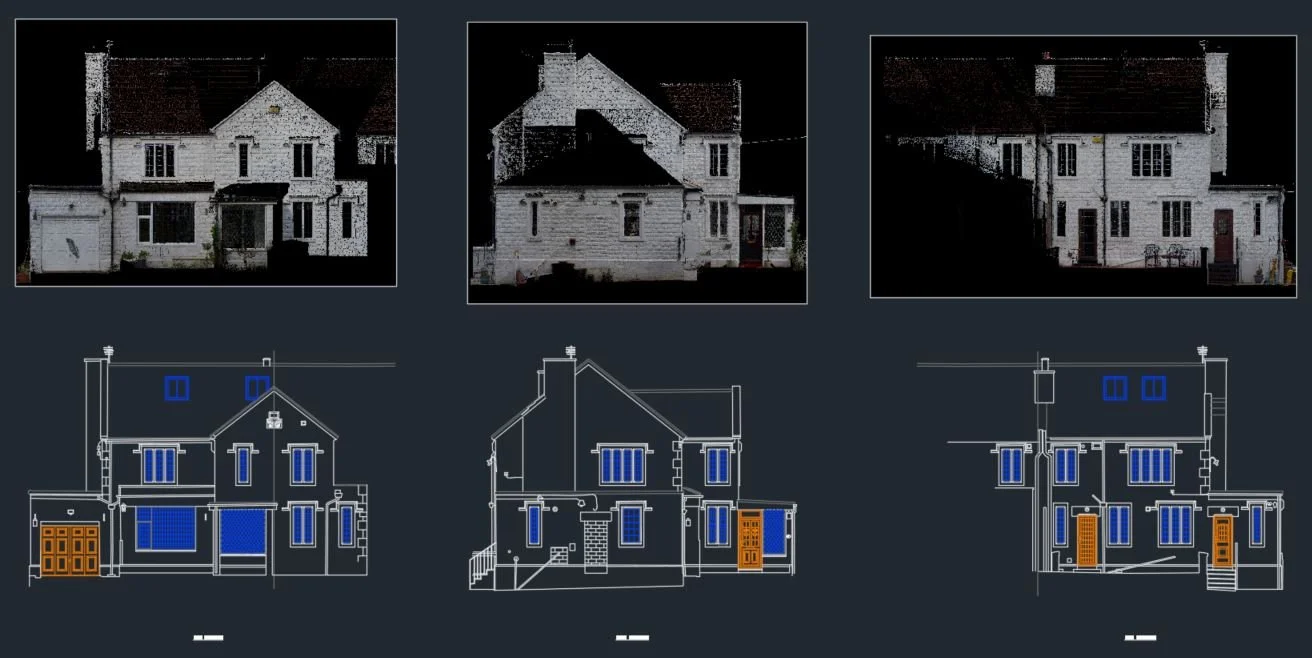

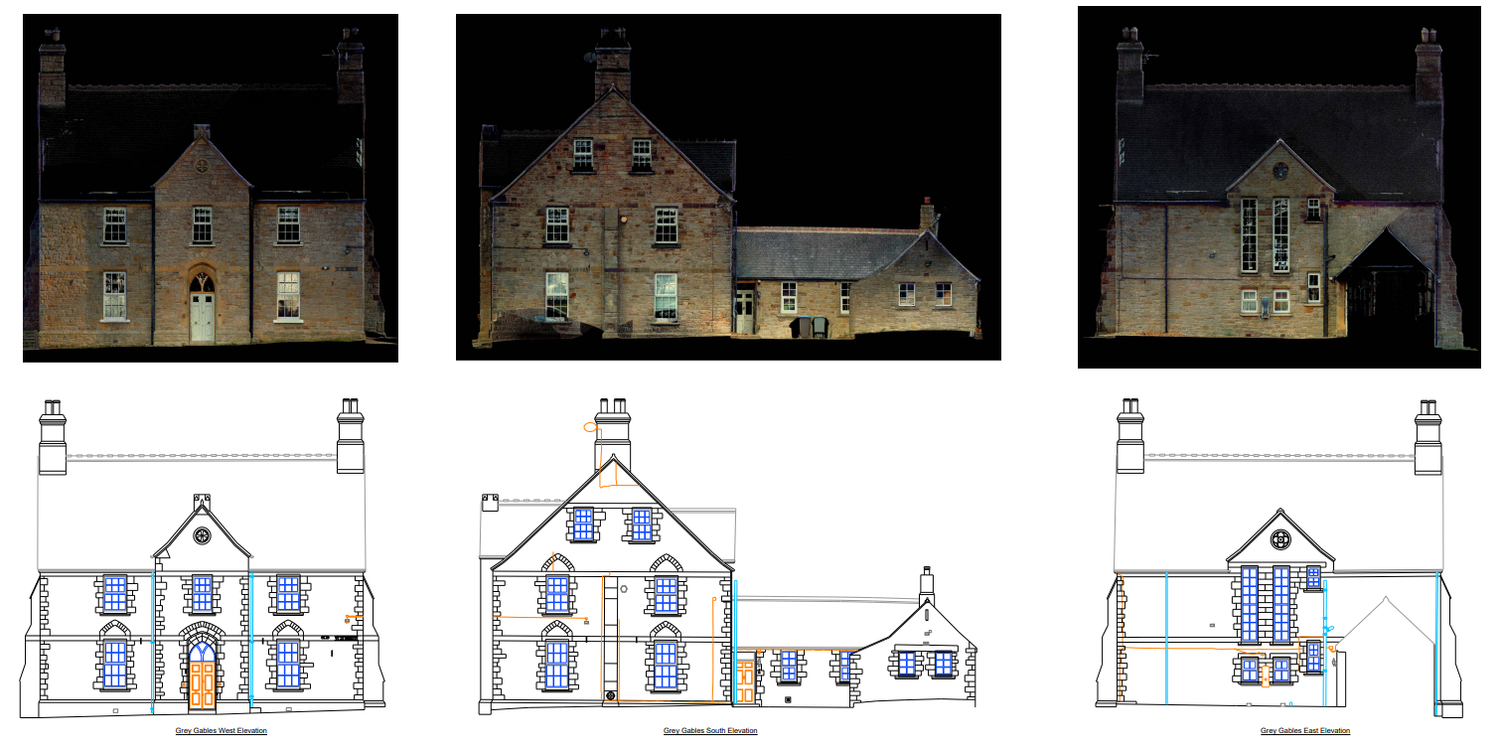

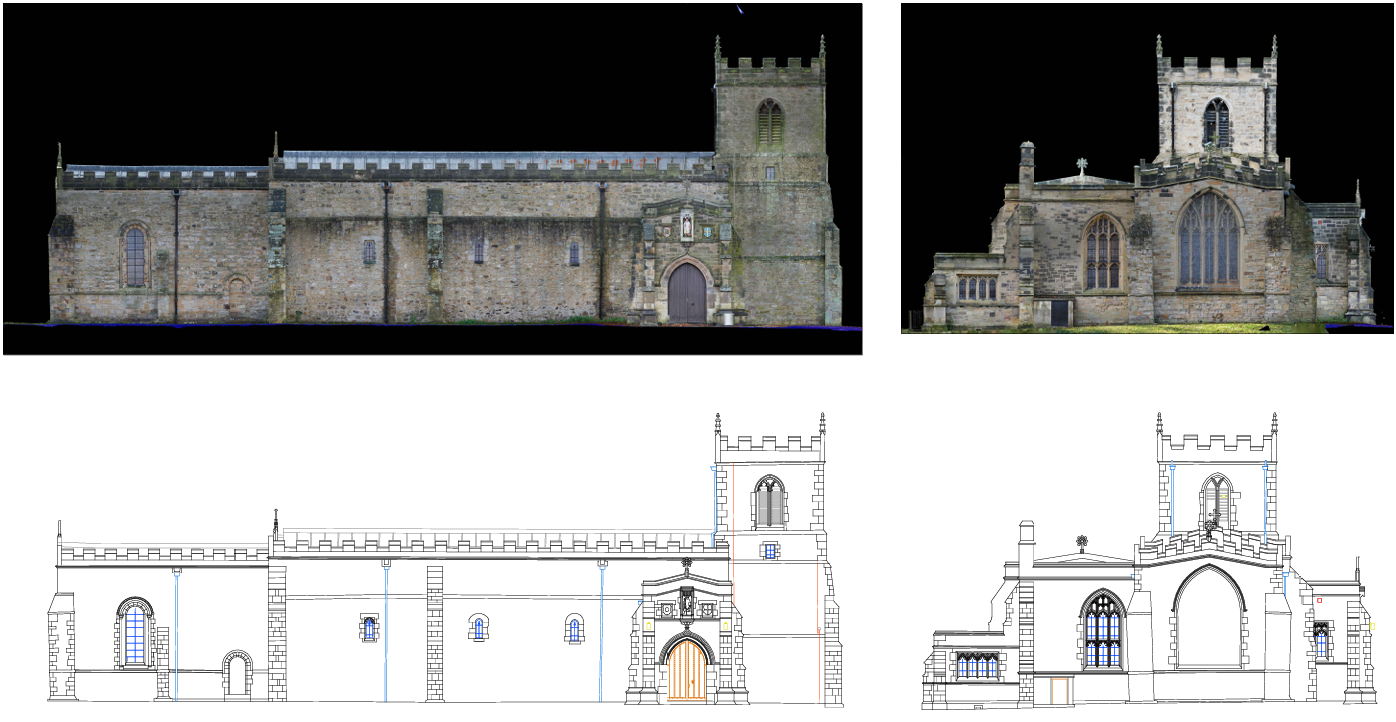

A selection of recent measured building survey drawings from across the North East.
Get started
Need a building measuring up?
Send us the building address, rough floor area and what you need the drawings for, and we'll come back with a competitive quote — usually the same day. Newcastle based, covering the whole UK.
